Introduction

Kheops is currently in the prototype phase and under continuous development.

Kheops is a tool for linting software architectures. It is available as a Docker image that can run in GitHub Actions or locally.

Running on Github

There are a few steps to follow in order to enable Kheops for a code repository using Github Actions workflows:

• Use ci-pr.yml for pull_request events
• Use ci-push.yml for push events
• Update the sample .yml files to match your workflow; see configuration for details
• Add the .yml files to the .github/workflows folder under your repository’s root
• Commit and push the changes to your Github repository

Kheops-based workflows are now available for your repository through Github Actions and can be triggered based on the events specified in the .yml files.

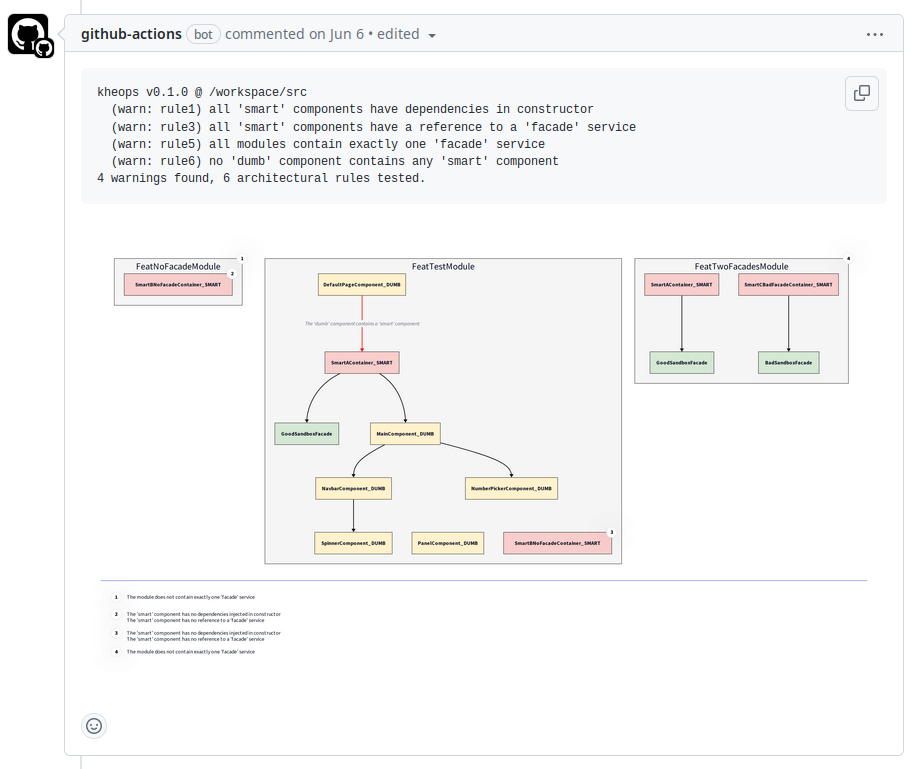

• The output of Kheops for pull_request events on a sample repository:

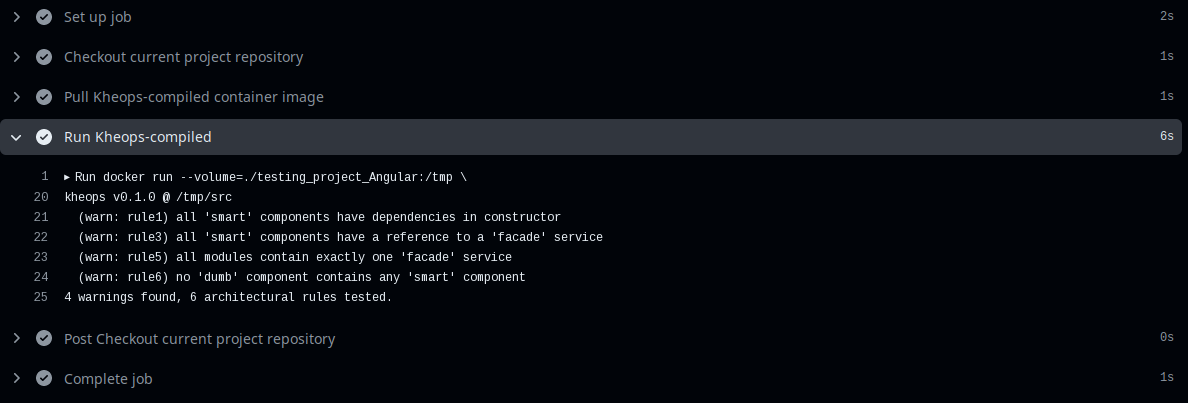

• The output of Kheops for push events is visible in the Github workflow run output and looks like:

For more information, check out the Github actions workflows documentation.

Configuration

Before starting the Github workflow, make sure Github runners are configured. The sample .yml files are configured to use a self-hosted runner. Alternatively, you can configure Github-hosted runners.

Both ci-pr.yml and ci-push.yml contain a configurable parameters. The ones you need to be configured are:

Note that the directories and file paths below are relative to the Docker image.

• WORKSPACE_DIR - directory inside the Docker container to which the root of your repository will be mapped; it is safe to use "/workspace" or "/tmp" as these already exist in the Docker image
• PROJECT_DIR - full path to the subdirectory inside your repository which contains the code. For example if the code directory is src and the repository has been mapped in /workspace using WORKSPACE_DIR, the correct path would be /workspace/src. For example:

   Local repository               Directories in Docker container         Parameters
   ----------------               -------------------------------         ----------
   .                              /workspace                              WORKSPACE_DIR="/workspace"
   ├── src  //code directory      ├── src                                 PROJECT_DIR="/workspace/src"
   ├── doc                        ├── doc
   └── pub                        └── pub


• INPUT_PARSER - analyzed language. Can be angular, typescript or julia
• LOG_LEVEL - logging level. Use info or debug

Running locally

The parameters above are passed as input arguments to kheopscli. The list of arguments can inspected by running kheopscli with the --help option. First,

$ docker pull ghcr.io/oxoaresearch/kheops-compiled:latest

and run with the --help option

docker run -it ghcr.io/oxoaresearch/kheops-compiled:latest /kheopscli/bin/kheopscli --help

This page is still a work in progres and under construction… ¯(ツ)/¯ 0x0α Research, 2024.
